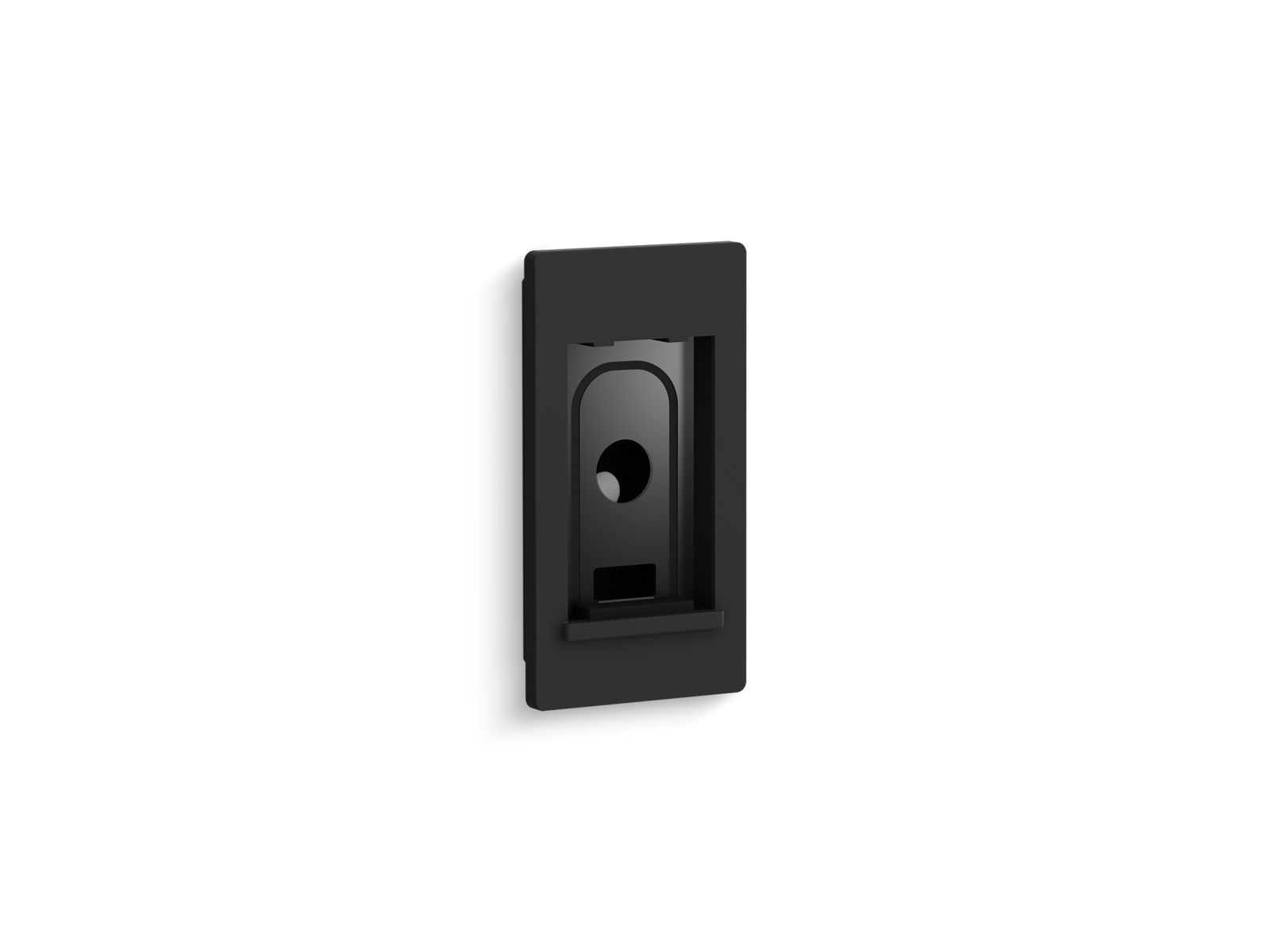

KOHLER DTV+ 97170 SERIES
FEATURES:Update your DTV showering system with touchscreen control. This kit is an easy way to upgrade an installed DTV II interface to the latest DTV+ touchscreen interface. By utilizing the existing interface wall sleeve, the new interface can be installed without making any expensive changes to the finished wall surface. The kit also includes a wiring connection adapter, eliminating the need to route new wiring or open walls.
Upgrade an existing installed DTV II primary interface (K-695) to a DTV+ interface (K-99693).
Kit includes cover plate and all required cables to convert the existing components to work with the new DTV+ system controller and interface, including a wiring connection adapter to utilize existing in-wall cables.
If the existing installation includes a Media Module (K-638), this component is not compatible with the DTV+ interface and must be removed from the system.
If the audio/music feature of the media module is currently being used, this must be replaced by installing the DTV+ amplifier module (K-99696). The audio/music functionality is different from the media module. Refer to the amplifier product details for m
If external lighting is controlled via the media module, this must be rewired to a wall switch. Refer to the installation instructions for more information.
If installed, the auxiliary interface (K-686) must also be upgraded at the same time using the K-97171 conversion kit.
Note that DTV II landscape primary interfaces (K-694) cannot be upgraded to the DTV+ interface.
Overall Width: 8-1/2"
Overall Height: 4-1/2"
Overall Depth: 1-9/16"
